Compact design with integrated fitting
Needle valve with adjustable flow rate
ciccolo
Superior needle structure enables flow adjustment with light handle torque
Allows fine adjustment of flow rate.
Equipped with locking mechanism
to maintain consistency
Exploded view of ciccolo
The body surface is chrome-plated to further improve airtightness. Passed the 1.5 MPa valve body pressure test, supports water, oil, and air up to 0.98 MPa, and allows flow rate adjustment with light handle torque.
Durable metal touch is used
Compact design achieves strength and saved space. The needle part uses metal touch with excellent sealing and durability, and is compatible with fluids with various chemical properties. Achieves stable operation over a long period of time.
Standard adoption of locking mechanism. The lineup also includes a panel mounting mechanism, opening indicator, and flow meter

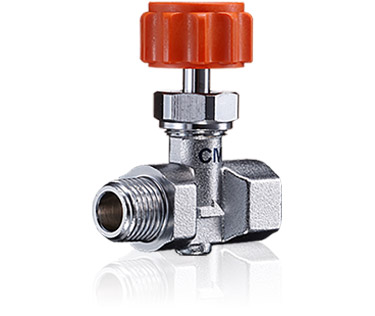

Standard tapered external thread plus internal thread
A standard needle valve model equipped with a tapered (PT) external thread on the primary side and a tapered (PT) internal thread on the secondary side.

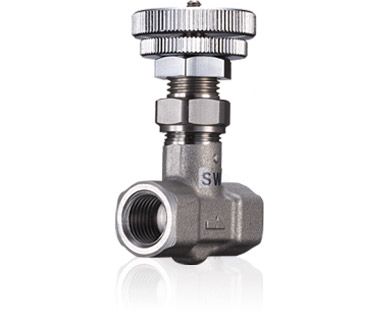

Stainless steel Ciccolo-α series
Ciccolo-α uses SUS304 stainless steel with excellent corrosion resistance. Ideal for equipment in the food, medical, and chemical fields that require hygiene.
A high-performance needle valve that continues the excellent performance of the Aceball

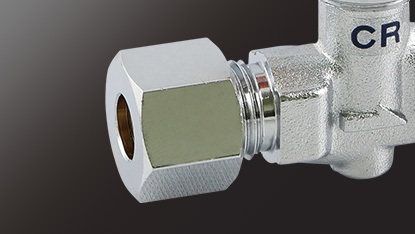

Integrated design of needle valve and fitting
Integrating the needle valve and fitting reduces the risk of fluid leakage. Streamlines your piping work.

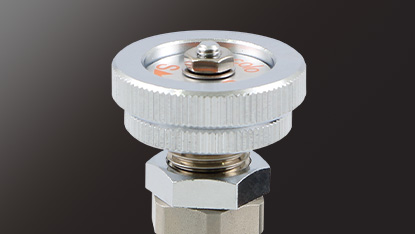

Standard equipped with locking mechanism that stabilizes the flow rate
All ciccolo α series models are equipped with a locking mechanism as standard. Secure it at a flow rate of your choice.
Ideal for use in industrial equipment that requires fine adjustment of flow rates, such as lubrication piping and air piping
- Bypass valve for firefighting equipment
- Pneumatic equipment such as compressors
- Cutting fluid tube for cutting machine
- Small pumps and auxiliary equipment
- Ship and agricultural equipment, etc...
- Please let us know the type of fluid and the purpose you intend to use it for. Depending on the intended use, it may not be possible to install.
- For fluids with a risk of corrosion, we recommend the stainless steel ciccolo-α.
We respond with extras to needs such as the changing of the color and material of the handle
- Changeable handle color / Standard color (orange) can be changed to black, blue, and two other colors
- Changeable handle material / Can be changed to ADC handle, etc...
- Angle type is also available for ciccolo
