Can be installed even in narrow spaces
In-line check valve to prevent
backflow of fluid
ACHECK
Installed in piping to prevent backflow of fluid that can cause equipment failure. Helps save space for narrow space piping
Backflow prevention valve
in piping with compact and
simple poppet structure
Exploded view of A check
IIn-line check valve to prevent backflow of fluid. The in-line design reduces the risk of leakage. Because it is a double threaded type, it can be installed neatly even in narrow places.
Employs a simple poppet structure
Employs a simple poppet structure that opens and closes the flow path with a sophisticated spring. Sealing performance is maintained for a long period of time, and the cracking pressure (spring strength) can also be changed.
Double threaded structure to save piping space Nipple type and socket type are available according to the connection shape

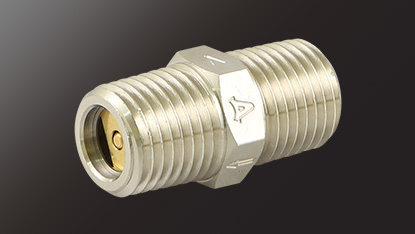

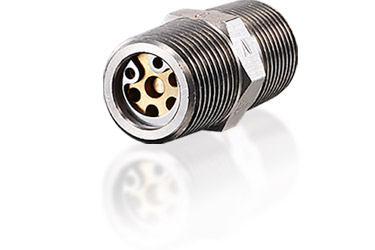

Nipple type external threading plus external threading that is easy to install
TExternal thread plus external thread nipple type check valve. Installation is easy, and it saves piping space.

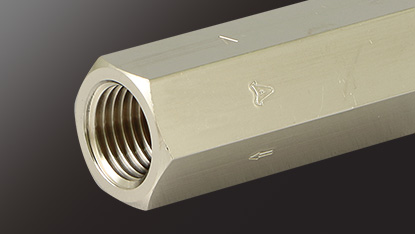

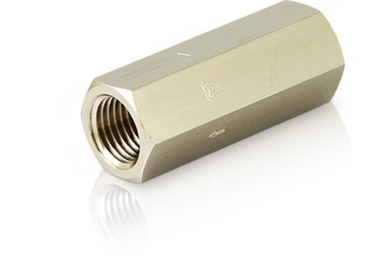

Socket type simple internal thread plus internal thread
Internal thread plus internal thread socket type check valve. Like the nipple type, it is easy to install and saves space.
In-line design allows for easy installation
In-line check valve saves space
Since the check valve is installed inside the piping, it can be inserted in a narrow piping space.
Robust structure with 3.0 MPa air pressure test
Airtight pressure performance of 0.1 MPa, maximum working pressure of 2.0 MPa, and air pressure resistance of 3.0 MPa.
Prevents backflow and failure of the valve body, making it ideal for installation in small pumps, industrial equipment, and medical devices
- Secondary piping of small pumps
- Hydraulic equipment for industrial machinery
- Backflow prevention for medical devices
- Backflow prevention for air piping etc...
- Please let us know the type of fluid and the purpose you intend to use it for. Depending on the intended use, it may not be possible to install.
We respond with extras to needs such as changing the shape, spring, O-ring, etc.
- Face-to-face changes
- Change mounting screws
- Change cracking pressure
- Change of O-ring due to fluid, etc...
- AWe will respond to the extent possible through a meeting. Prices will be quoted separately depending on the lot.
